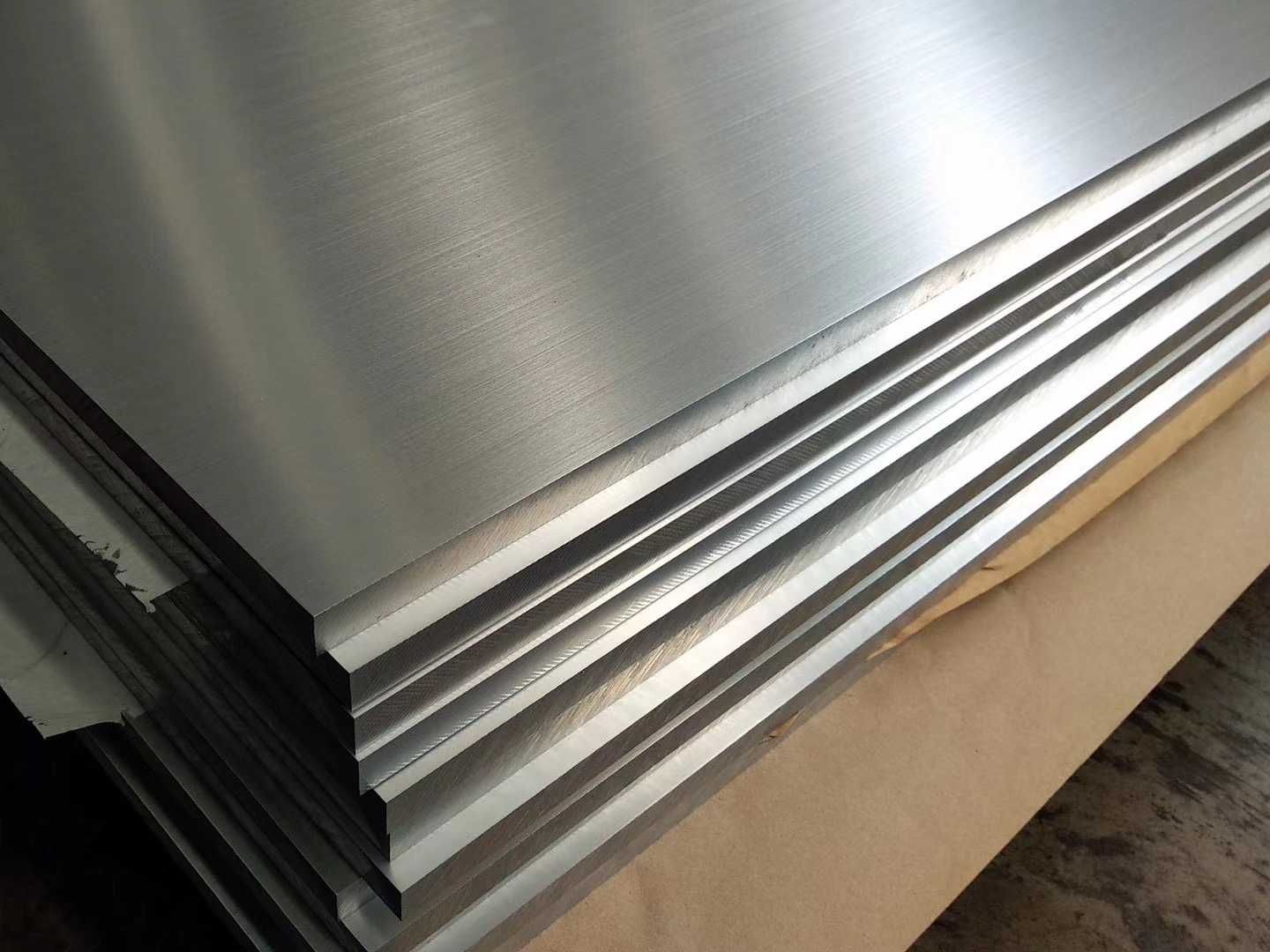

5086 H32 Aluminum Sheet

Common tempers for 5086 aluminum sheet include H32, H34, H112 and O tempers, with H32 and H34 being the most commonly used. H32 and H34, after heat treatment and cold working, possess excellent strength and ductility, making them suitable for welding and marine applications. H112 offers superior corrosion resistance, making it suitable for applications requiring less-demanding strength. O temper, after full annealing, exhibits excellent ductility and is suitable for further processing. Thicknesses of 5086 aluminum sheet generally range from 0.15 to 600 mm, widths from 20 to 2650 mm, and lengths from 500 to 16,000 mm. Specific specifications can be customized according to customer needs.

5086 aluminum sheet is primarily alloyed with magnesium, ranging from 3.5% to 4.5%, along with smaller amounts of manganese (0.2% to 0.7%) and chromium (0.05% to 0.25%). The remainder is aluminum. These alloying elements contribute to the sheet's excellent properties. "H32" indicates the work-hardened and stabilized state, where "H" represents the work-hardened state, "3" indicates that the mechanical properties have stabilized after work-hardening through low-temperature heat treatment or due to heat exposure during processing, and "2" indicates that the work-hardened plate has been stabilized to 1/4 hardness. This means that the 5086 h32 aluminum plate has a medium hardness and strength, while also having certain toughness and fatigue resistance.

The following are the main performance characteristics of 5086 H32 aluminum plate:

1. Mechanical Properties

Tensile Strength: Typically between 310 and 350 MPa.

Yield Strength: Approximately 210 to 240 MPa.

Elongation: Typically between 12% and 18%, indicating good plasticity.

2. Physical Properties

Density: Approximately 2.66 g/cm³.

Thermal Conductivity: 5086 aluminum alloy has a low thermal conductivity of approximately 120 W/(m·K).

Coefficient of Thermal Expansion: Approximately 23.6 × 10^-6 /°C.

3. Corrosion Resistance

5086 aluminum sheet has excellent corrosion resistance, especially in marine environments, making it suitable for use in ships and offshore structures.

4. Weldability

5086 H32 aluminum alloy has excellent weldability and can be welded using a variety of welding methods, such as argon arc welding and MIG welding.

5. Processability

This alloy exhibits excellent cold working properties and can be processed through processes such as rolling, stamping, and bending.

6. Heat Treatment

After heat treatment, 5086 H32 aluminum alloy retains a certain level of strength and ductility, making it suitable for use in load-bearing applications.

Due to its excellent mechanical properties, corrosion resistance and processability, 5086 H32 aluminum sheet is widely used in various applications. The following are some of its main applications:

1. Shipbuilding

Due to its excellent corrosion resistance and strength, 5086 H32 aluminum plate is commonly used in ship hulls, decks, bulkheads, hatch covers, and other components.

2. Marine Structures

This aluminum alloy is widely used in offshore platforms, floating structures, and other marine engineering applications, offering excellent resistance to seawater corrosion.

3. Transportation

5086 aluminum alloy is used in the manufacture of bodies and other structural components for cars, trucks, trailers, and railroad cars. Its lightweight and strong properties contribute to improved fuel efficiency and load-carrying capacity.

4. Buildings and Structures

In the construction industry, 5086 H32 aluminum sheet is used for building facades, door and window frames, guardrails, roofs, and other structural components due to its corrosion resistance and aesthetic appeal.

5. Tanks and Pressure Vessels

This aluminum alloy is suitable for the manufacture of tanks, pressure vessels, and liquid transport piping, especially in environments requiring corrosion resistance.

6. Machinery and Equipment

5086 aluminum alloy is used in the manufacture of various machinery components and equipment housings due to its good workability and strength.

7. Aerospace

Although 5086 aluminum alloy is not as widely used in aerospace as some aircraft aluminum alloys, it can still be used as structural components in certain applications. 8. Protective Facilities

5086 aluminum alloy also provides excellent performance in protective structures such as guardrails, fencing, and other structures.

Due to its comprehensive properties, 5086 H32 aluminum sheet is suitable for a variety of applications requiring strength, corrosion resistance, and processability.
